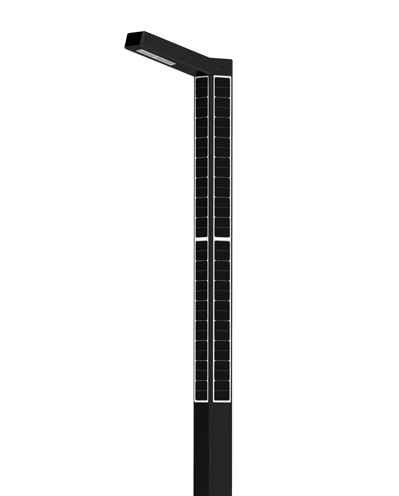

Square Helios(Black)

The square Helios pole light is based on the modification of the triangle lamp post, which is simple and generous. The four-sided high-efficiency solar panel tightly surrounds  the quadrilateral Helios pole and the solar panel at the top of the led fixture to absorb the sunlight in all directions, so as to meet the long days ‘ backup demand. Built-in the  battery and controller to the light pole, which is convenient for daily maintenance. With our IoT system, we can monitor  and control the working mode of light at any time. The  square Helios is more suitable for villa areas, Parks Lakeside and other areas.

Mode NO. Square Helios
Lighting
light Output 10000LM-12000LM
LED Chip High bright 5050
CCT 2700-6000K(can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor/ IoT / Time Schedule
Solar Panel
Power of PV module 320W
Life Span 80% power after 25 years
Storage
Battery Capacity 1100WH
Lighting time in rainy day >10 days
Life Span 4000 Cycles(>10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent,activated by sunlight
Environment
Working Temperature -15°C to+ 70°
Water Resistance IP65
Mechanical Specifications
Recommended Pole Height 6m
Net Weight(Kg) 156kg
Package Dimension(mm) 6050*400*400(Pole)
Download Specsheet

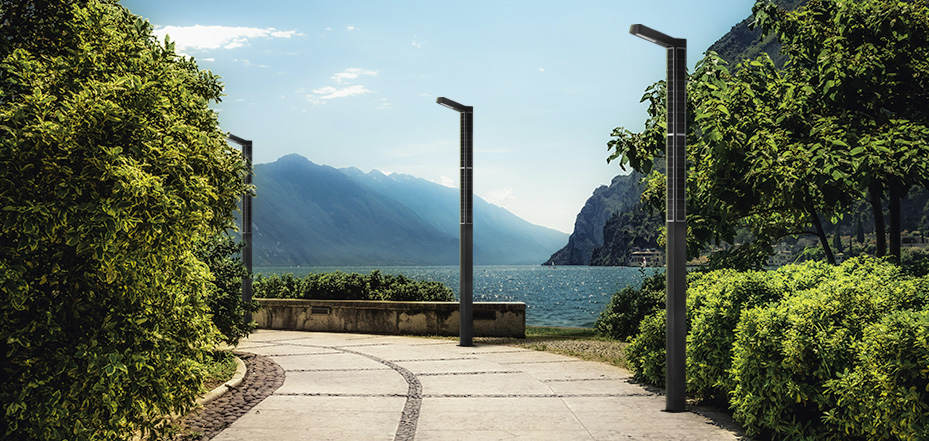

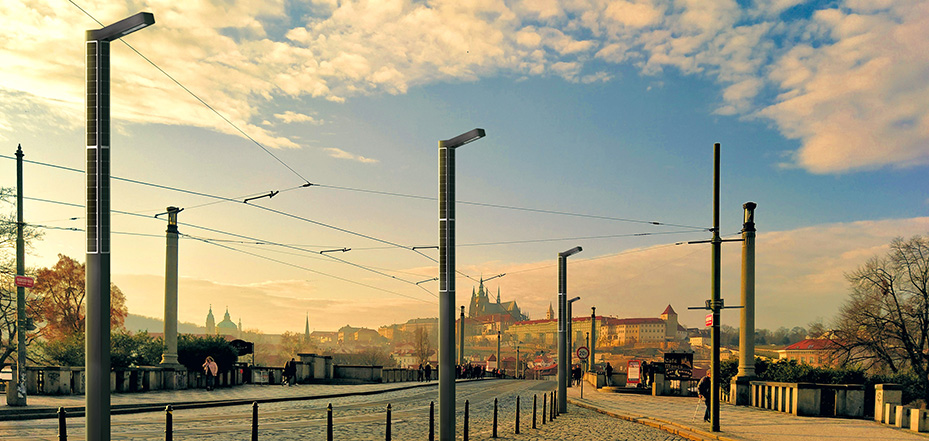

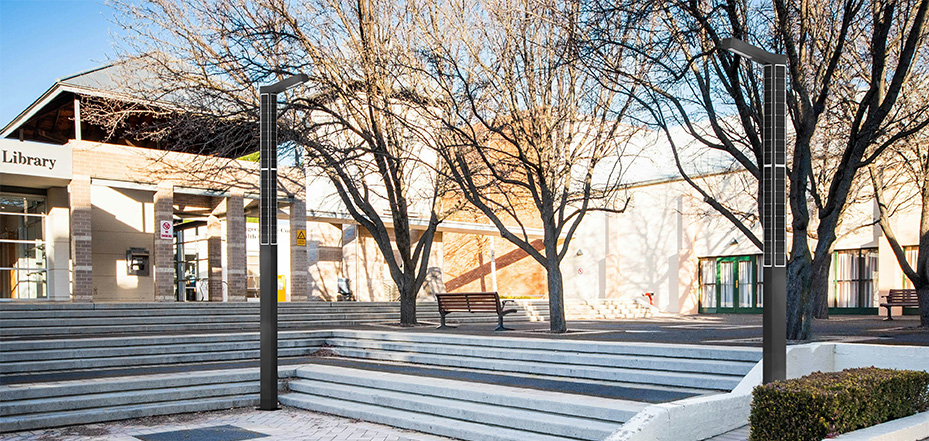

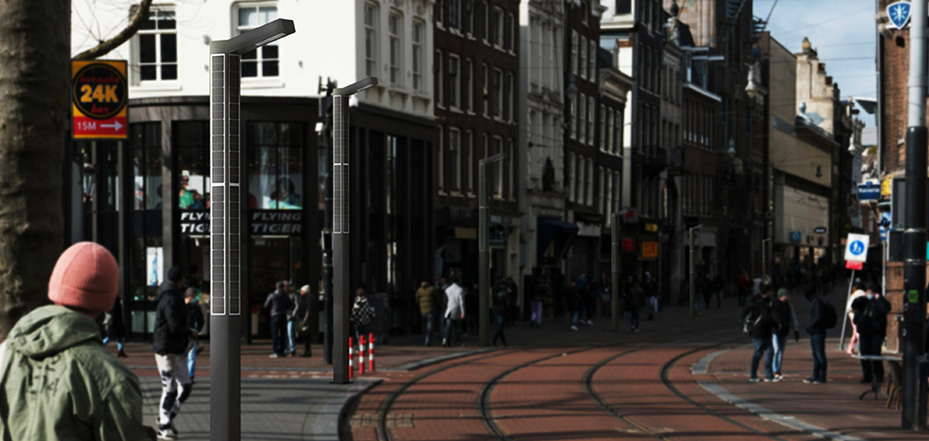

APPLICATIONS

Square Helios(Black)
Square Helios(Black)
Square Helios(Black)
Square Helios(Black)

FUNCTION INTRODUCTION
