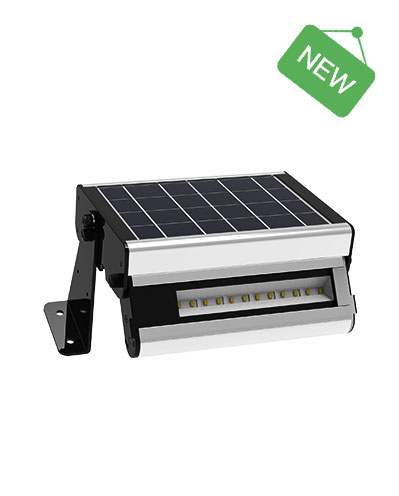

Solar Elf-5W

SOLAR ELF

– Independently Adjustable Solar panel and LED  perfect light placement.
– Adjustable Mechanisms from Zero to 120° Degrees.
– Maximum Solar Charging.
– Length : from 21cm to 1.5 meter can be manufactured upon request to suit your project.
– Perfect for : Walkways,Bridges, Entrances,Roof edges and Many more.

SPECIFICATION

Mode NO. Solar Elf-5W
Lighting
light Output 500LM
LED Chip High bright 3030
CCT 2700-6000K(can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor / IOT / Time Schedule
Solar Panel
Power of PV module 5W
Life Span 80% power after 25 years
Storage
Battery Capacity 20WH
Life Span 4000 Cycles (10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent, activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance IP65
Mechanical Specifications
Net Weight 1.2Kg
Package  Dimension 210*140*40mm
Download Specsheet

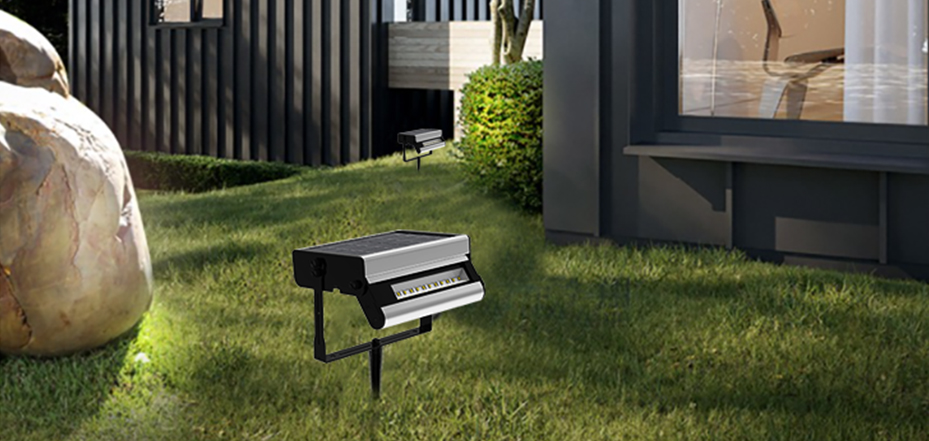

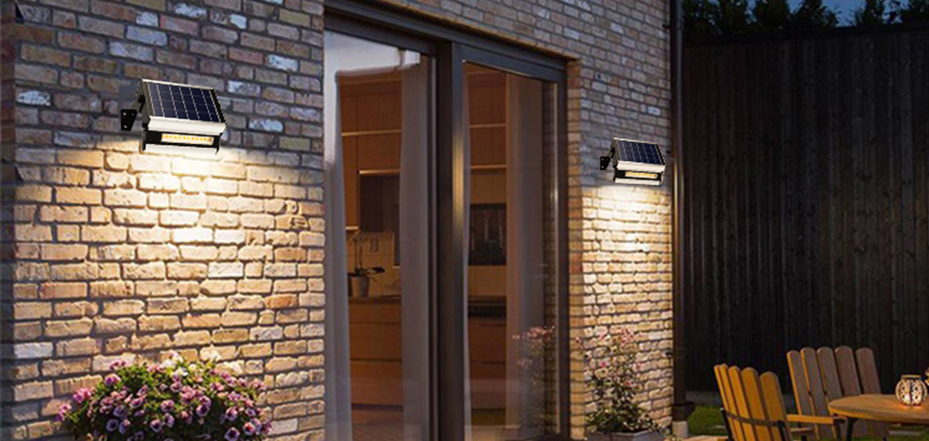

APPLICATIONS

Solar Elf-5W
Solar Elf-5W

FUNCTION INTRODUCTION
