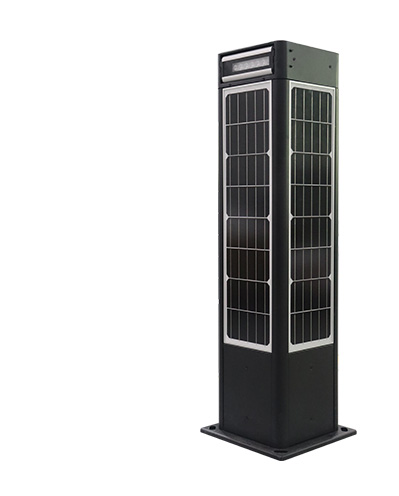

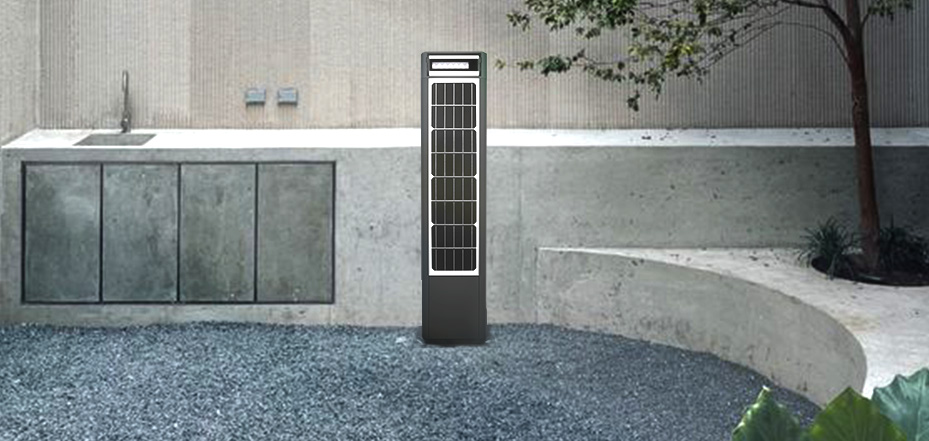

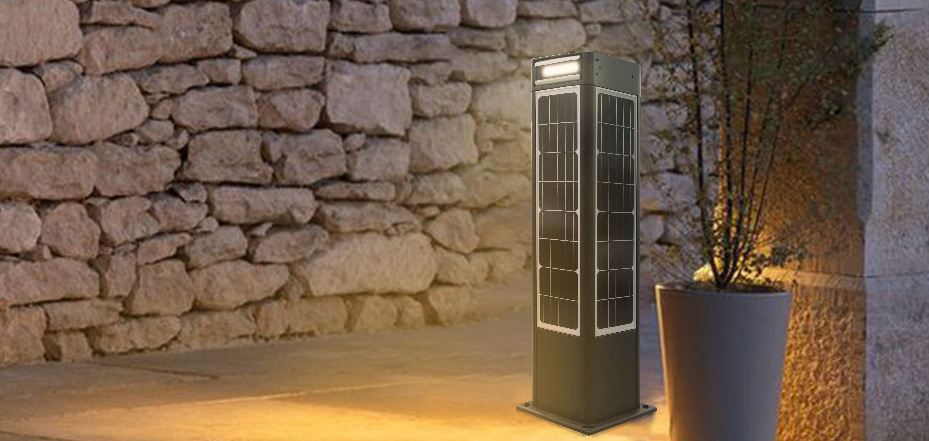

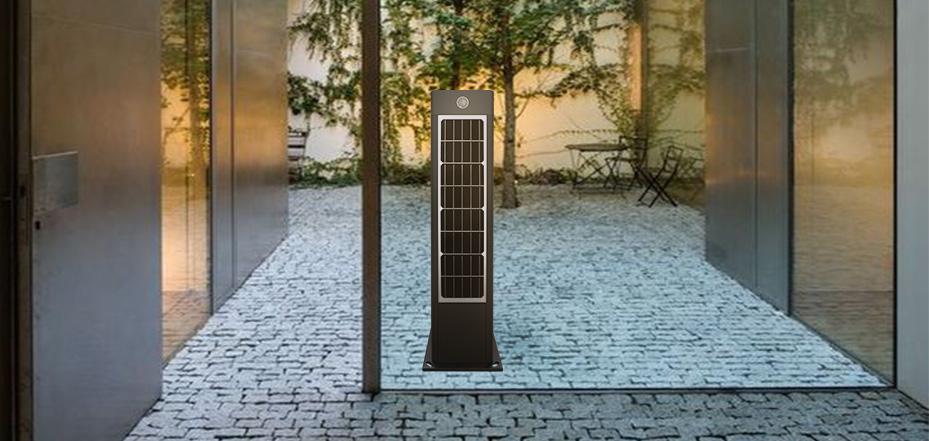

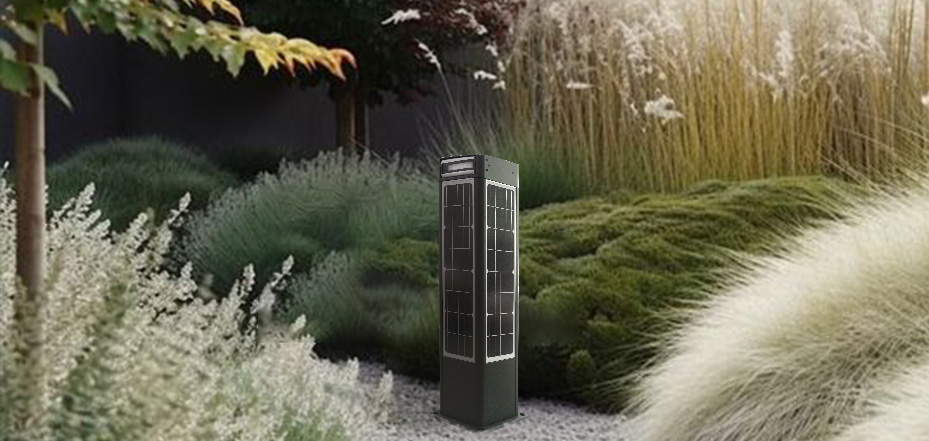

Mini square helios solar bollards are ideal for road applications in parks and villas. Five monocrystalline silicon solar panels absorb solar energy from all directions and automatically activate the night lighting switch. 360° illumination and one meter height can perfectly illuminate the ground and surrounding environment. The independent and unique aesthetic design combined with high-quality construction makes this Mini square Helios ideal for locations requiring high-quality and low-maintenance lighting.
| Mode NO. | Mini Square Helios |
| Lighting | |
| light Output | 3000LM |
| LED Chip | High bright 3030 |
| CCT | 2700-6000K(can be customized) |
| Life Span | 100,000 hours to LM80 specifications |
| Working Way | Motion Sensor |
| Solar Panel | |
| Power of PV module | 90W |
| Life Span | 80% power after 25 years |
| Storage | |
| Battery Capacity | 150WH |
| Life Span | 4000 Cycles (10 years) |
| Charging Controller | |
| Life Span | 5 years |
| Working Mode | MPPT |
| Control Mode | Intelligent, activated by sunlight |
| Environment | |
| Working Temperature | -15°C to +70°C |
| Water Resistance | IP65 |
| Mechanical Specifications | |
| Recommended Pole Height | 1m |
| Net Weight | 23Kg |
| Package Dimension | 1050*280*280mm |
