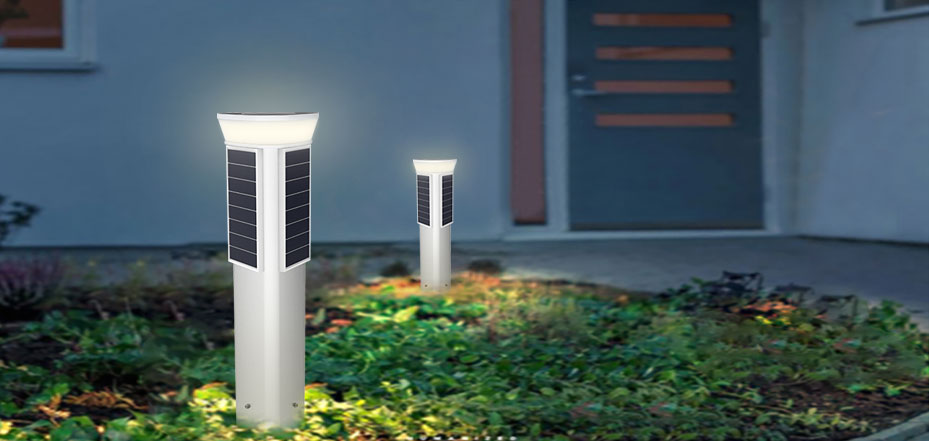

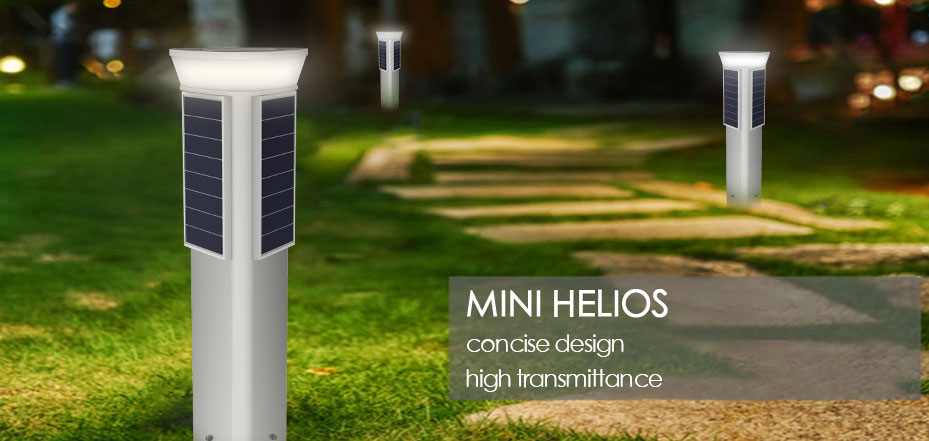

Mini-Helios triangular solar bollards are ideal for road applications in parks and villas. The four pieces monocrystalline silicon solar panel absorbs solar energy in all directions, and activates the night lighting switch automatically. 360° illumination and one meter height can perfectly illuminate the ground and surrounding environment.Independent and unique aesthetic design combined with high-quality structure making this Mini-Helios very suitable for places requiring high-quality and low maintenance lighting.
Lighting |
|
| Light output | 2000LM |
| LED Chip | 5050 |
| CCT | 2700-6000K ( can be customized) |
| Life Span | 100,000 hours to LM80 specifications |
| Working Way | Motion Sensor/IOT/Time Schedule |
Solar Panel |
|
| Power of PV module | 70W |
| Life Span | 25 years |
Storage |
|
| Battery Capacity | 80WH |
| Autonomy | 2-3 days |
| Life Span | 4000 cycles ( 10 years) |
Charging Controller |
|
| Life Span | >12years |
Mechanical Specifications |
|
| Recommened Pole Height | 1m |
| Recommended Top diameter of the Pole | 60mm |
| Product Dimension (mm) | 1000*300*300 |
Environment |
|
| Working Temperature | ‘-15°C to +70°C |
| Water Resistance | IP65 |
