H5

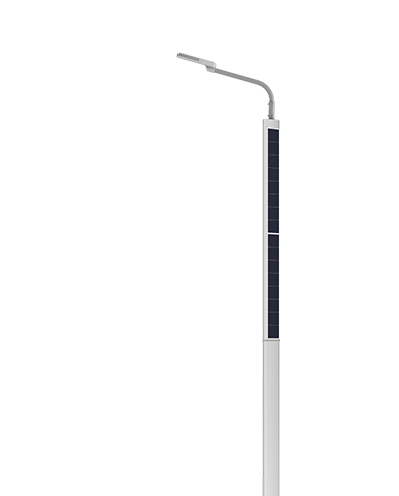

NOMO’s HELIOS displays a Highly Tall Standing, Uniquely Shaped form and well-designed Solar Street Pole light. Having Not only a first impression appearance (look), but a strong wind resistance that have light weight solar panels on top of the pole as well as a best performance to absorb directly sunlight from any angle during the day, with a performance of higher level operating reliability. Additionally it has more sophisticated technology that can prevent dust, snow, bird poop, or any applications from garden and landscape issues, which often leads to reducing the generated power efficiency and also cause charge failure.

SPECIFICATION

Mode NO. H5
Lighting
light Output 10000LM
LED Chip High bright 5050
CCT 2700-6000K(can be customized)
Life Span 100,000 hours to LM80 specifications
Working Way Motion Sensor / IoT / Time Schedule
Solar Panel
Power of PV module 160W
Life Span 80% power after 25 years
Storage
Battery Capacity 1000WH
Life Span 4000 Cycles (10 years)
Charging Controller
Life Span >12 years
Working Mode MPPT
Control Mode Intelligent, activated by sunlight
Environment
Working Temperature -15°C to +70°C
Water Resistance  IP65
Mechanical Specifications
Recommended Pole Height  5m
Net Weight 93.1Kg
Package  Dimension 5000*406*84mm
Download Specsheet

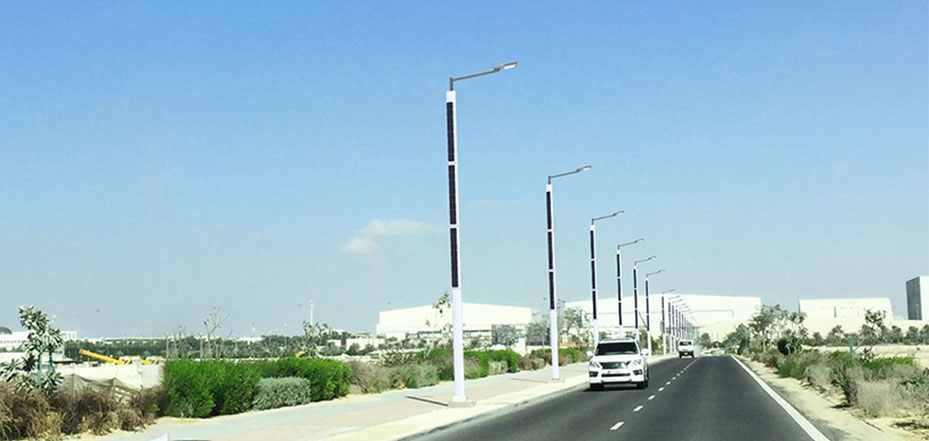

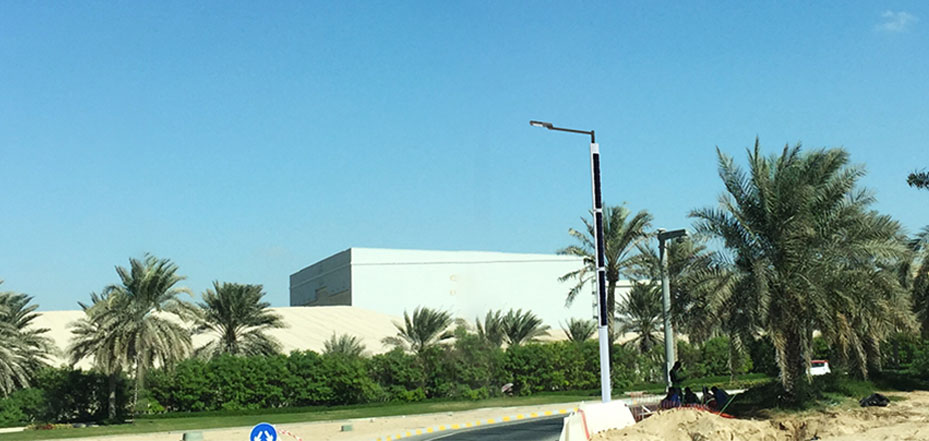

APPLICATIONS

H5
H5

FUNCTION INTRODUCTION

HELIOS
