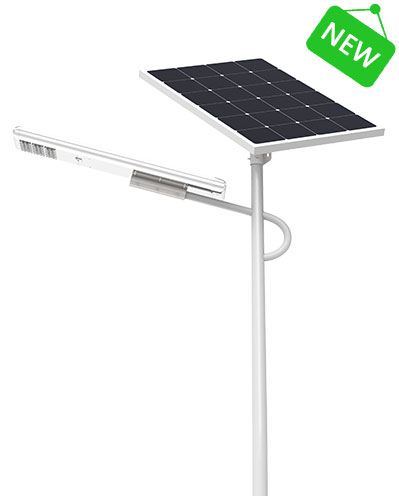

| Mode NO. | NAP-120 |
| Lighting | |
| Light Output | 5000-6200LM |
| LED Chip | High bright 5050 |
| CCT | 2700-6000K(can be customied) |
| Life Span | 100,000 hours to LM80 specifications |
| Working Way | Motion Sensor / IoT / Time Schedule |
| Solar Panel | |
| Power of PV module | 210W |
| Lifespan | 80% power after 25 years |
| Storage | |
| Battery Capacity | 1152WH |
| Life Span | 4000 Cycles (>10 years) |
| Charging Controller | |
| Life Span | >12 years |
| Working Mode | MPPT |
| Control Mode | Intelligent, activated by sunlight |
| Environment | |
| Working Temperature | -15°C to +70°C |
| Water Resistance | IP65 |
| Mechanical Specifications | |
| Recommended Top diameter of the Pole | 76mm |
| Recommended Pole Height | 9m-10m |
| Net Weight | 25Kg |
